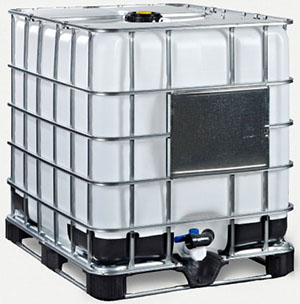

Intermediate Bulk Container - IBC
We are pleased to introduce our latest product for 1000 ltr. capacity - the IBC. Our special design complies wth international standards and provides for bulk packaging solution for varied industries and applications. To ensure globally consistent quality compatibility; we base our production system on maximum in-house manufacturing and consistent standardization.
IBC is an efficient space utilization and ideal weight combined with maximum safety and user friendliness. The benefits of the versatile BSA IBC’S product make the most frequently used product in industry where the bulk packaging and storage involve.
- Optimum utilization of existing transport space because of cube-shaped.
- Speedy filling and discharge process using conventional equipment
- Also ideal for use with automatic filling and transport systems
- Large label plates for fast, easy labelling
- No additional material required for other packaging
- Perfect stickability and ideal suitability for high-bay storage systems
- Simple discharge process and very good evacuation of residues
- Worldwide collection by our recollection partner.
| DESCRIPTION | COMPOSITE PALLET IBC | WOODEN PALLET IBC | |
| Dimension (L x W x H) (mm) | 1200 X 1000 X 1155 | 1200 X 1000 X 1175 | |
| Weight | 58 KG | 60 KG | |
| Inner Container UV Stabilized HM-HDPE |
Standard | Transparent White | Transparent White |
| Optional | Black | Black | |
| Useful Volume (Ltr) | Standard | 1000 Ltr | 1000 Ltr |
| Filling Opening | Standard | 6 Inch (DN 150) | 6 Inch (DN 150) |
| Optional | 9 Inch (DN 225) | 9 Inch (DN 225) | |
| Gasket for Filling Opening | Standard | EPDM | EPDM |
| Optional | Viton | Viton | |
| Discharge Valve | Standard | 2 Inch Butterfly Valve (DN 50) | 2 Inch Butterfly Valve (DN 50) |
| Optional | 2 Inch Ball Valve (DN 50) | 2 Inch Ball Valve (DN 50) | |
| 3 Inch Butterfly Valve (DN 80) | 3 Inch Butterfly Valve (DN 80) | ||
| Identification Plate(mm) | Standard | 510 x 400 | 510 x 400 |
| Pallet Type | Standard | Composite Pallet | Wooden Pallet (Heat Treated - ISPM 15) |
| Additional Features | Press fitted security flap at discharge port & Corner Protector to protect IC at bottom. Option of Camlock Adopter is availble. |
||
